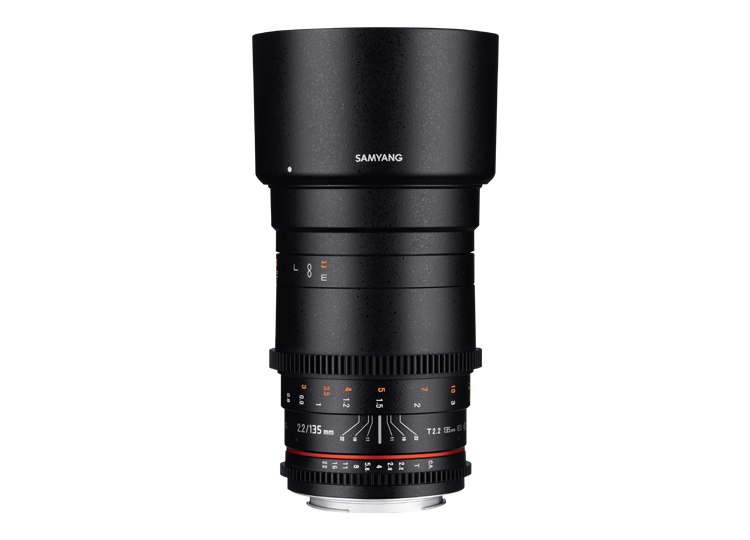

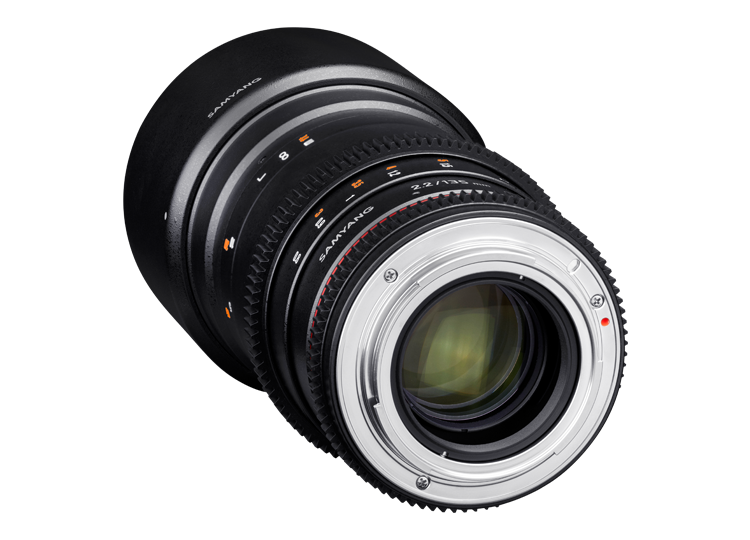

Samyang 135mm T2.2 VDSLR ED UMC
The ideal telephoto cine lens – Samyang 135mm T2.2
Samyang Optics 135mm T2.2 VDSLR ED UMC is a manual focus telephoto cine lens for full frame sensor sizes. It expresses vibrant color and soft out-focusing area which makes it the best lens to shoot portrait, night scenery, wild-life and journalism photography.
VDSLR Cine Lens Features

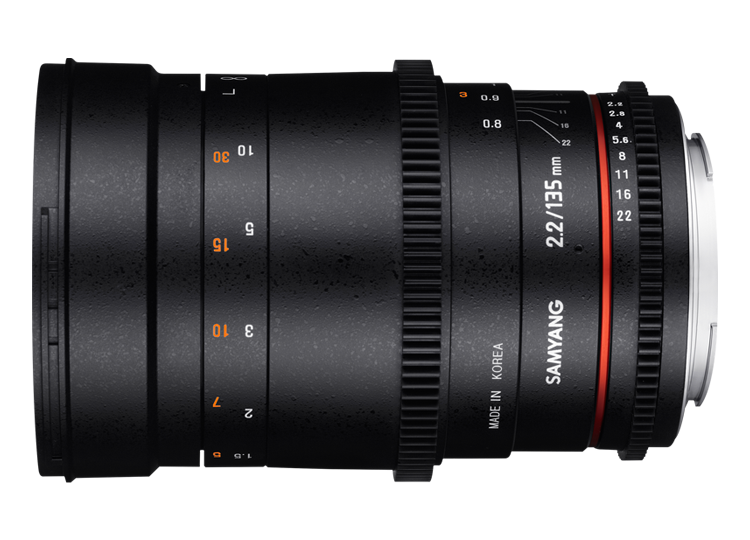

Samyang 135mm T2.2 VDSLR ED UMC allows more delicate video work with T number marks. The focus gear ring is installed for follow focus system. You may change the aperture quietly and smoothly with the uncoupled aperture gear rings. Also, distance scale and T numbers are marked on both sides of the lens for convenience.
Optical Features
Samyang 135mm T2.2 VDSLR ED UMC is a manual focus lens with a low T number. You may control the lens precisely when shooting under various exposure environment including relatively dark or too bright situations. This lens features 11 lenses in 7 groups especially including extra low dispersion lens (ED) to offer high resolution throughout the image. Ultra Multi Coating(UMC) of Samyang Optics is used to optimize the light penetration and minimizes flare and ghost. With such optical construction, it has 0.8m of minimum focal length to film subjects in near distance. Also, the floating type design secures as much light as possible and maximizes the resolution by minimizing spherical aberration and distortion.
Hardware Features

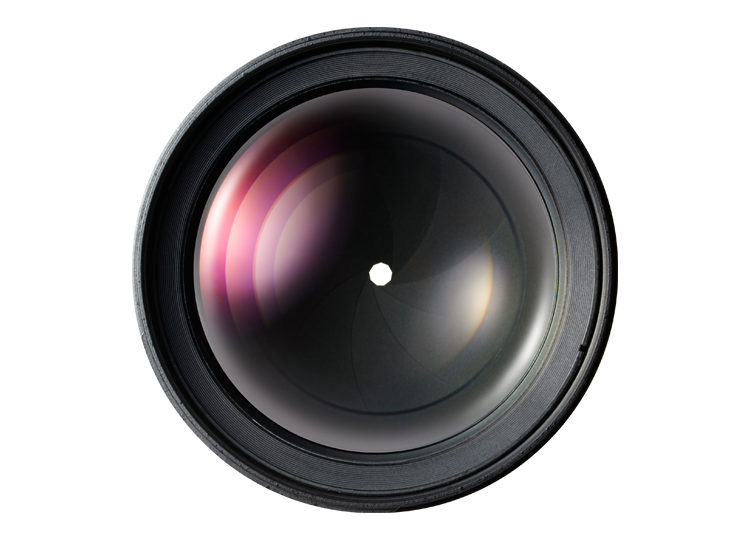

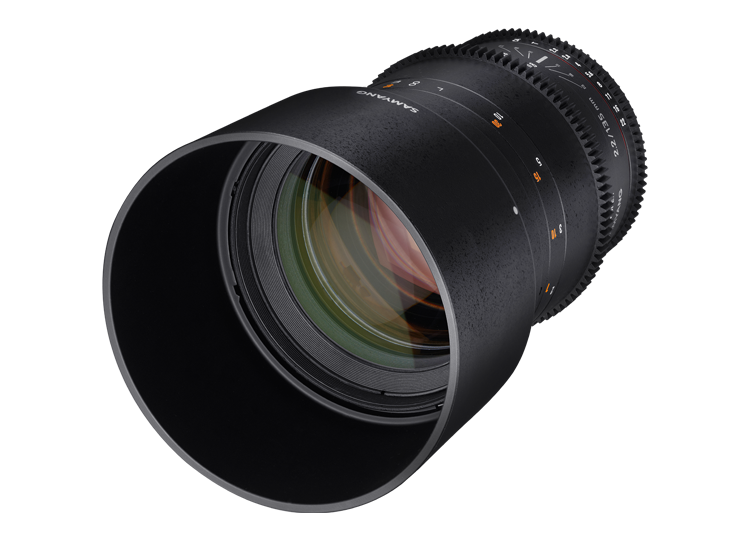

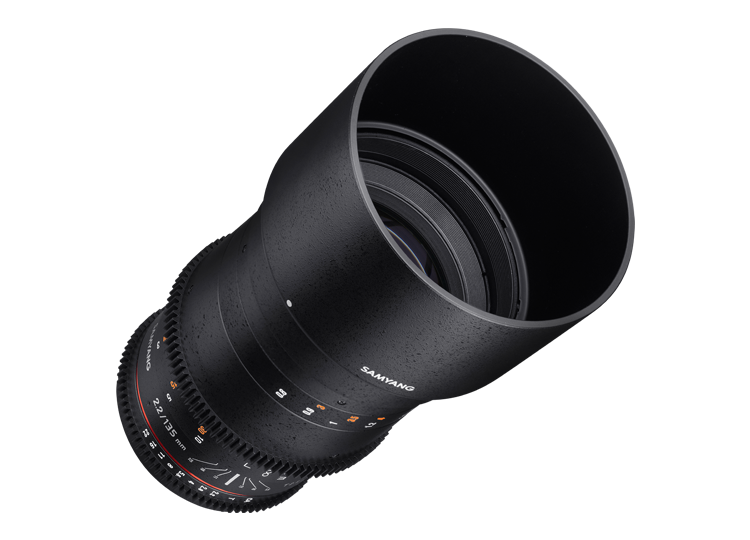

There are 9 aperture blades designed to be almost as a full circle when aperture is closed which expresses starlike ray clearly and beautifully. The frame of the lens is compact and solid since it is made of high-strength aluminum alloy so you can create trustworthy images. Also, detachable petal-shaped lens hood minimizes flare and ghost by sheltering lens from unnecessary lights.
Specifications
Filter Size: 77.0mm
Maximum Diameter: 82.0mm
Mount: Nikon F
Angle Of View 35mm: 18.8˚
Angle Of View APS-C: 12.4˚
Length(mm) Lens Mount to Front: 119.6mm
Weight(g): 820g
Gear Module: 0.8mm
Gear A: 7mm
Gear B: 4mm
Gear C: 43.8mm
Gear D: 8mm
Focus Ring Diameter: 81.6mm
Aperture Ring Diameter: 70.4mm
Mount: Canon EF
Angle Of View 35mm: 18.8˚
Angle Of View APS-C: 11.7˚
Length(mm) Lens Mount to Front: 122.1mm
Weight(g): 835g
Gear Module: 0.8mm
Gear A: 7mm
Gear B: 4mm
Gear C: 43.8mm
Gear D: 10.5mm
Focus Ring Diameter: 81.6mm
Aperture Ring Diameter: 73.6mm
