Samyang 100mm T3.1 ED UMC Macro VDSLR


Free Your Action Telephotos and close-ups for cinematography

Macro Telephoto Manual Focus Lens

Samyang Optics 100mm T3.1 VDSLR ED UMC MACRO is a macro telephoto manual focus cine lens designed for full frame sensor sizes. The maximum close-up magnification is 1:1. This macro lens with vivid color and soft out-focusing is the best lens for close-up images of flower and insects. It also can be used as a 100mm telephoto lens for landscapes and portraits.

VDSLR Cine Lens Features

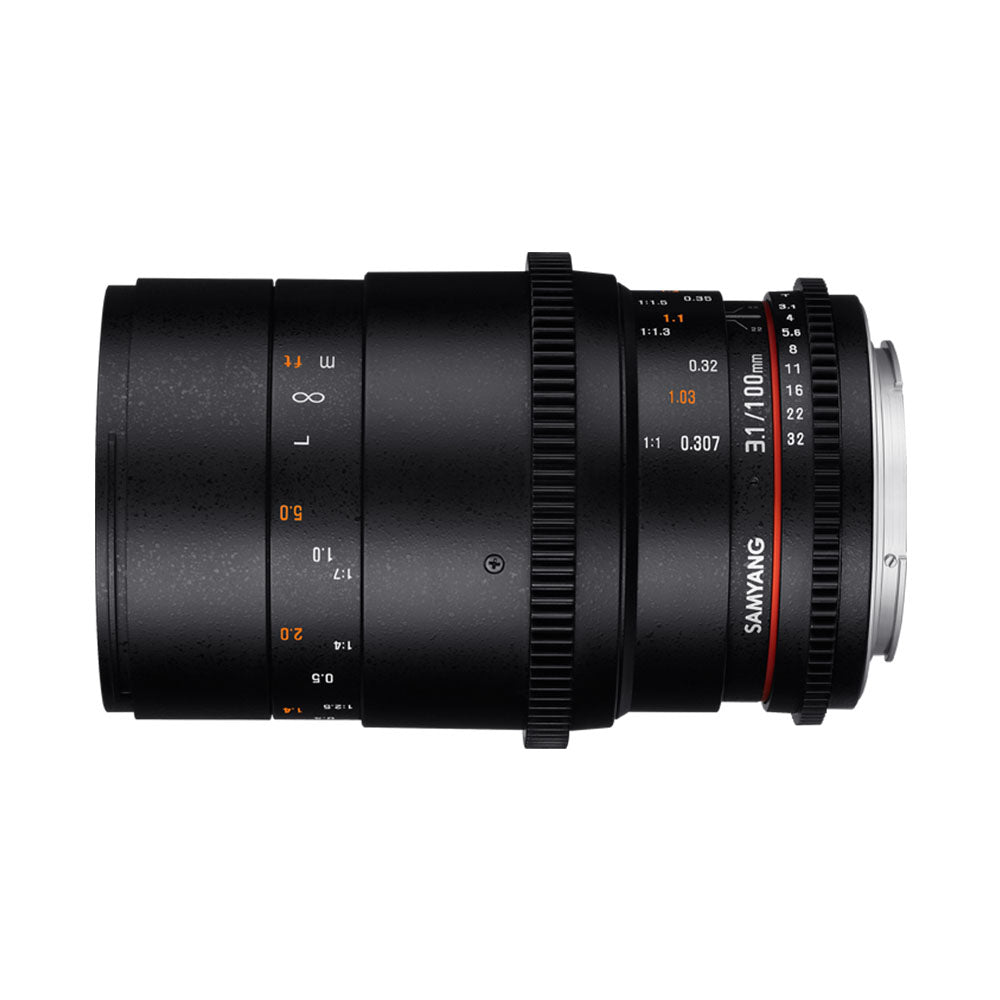

Samyang 100mm T3.1 VDSLR ED UMC MACRO allows more delicate video work with T number marks. The focus gear ring is installed for follow focus system. You may change the aperture quietly and smoothly with the uncoupled aperture gear rings. Also, distance scale and T numbers are marked on both sides of the lens for convenience.

Optical Features

Samyang 100mm T3.1 has a low T number of T3.1. You may control the lens precisely when shooting under various exposure environment including relatively dark or too bright situations This lens features 15 lenses in 12 groups especially including a high refractive lens (HR) and extra low dispersion lens (ED) to minimize color aberration and unnecessary light dispersion in order to offer high resolution throughout the image. Ultra Multi Coating (UMC) of Samyang Optics is used to optimize the light penetration and minimizes flare and ghost. With such optical construction, it has 0.307m of minimum focal length to film subjects in a very near distance.

Hardware Features

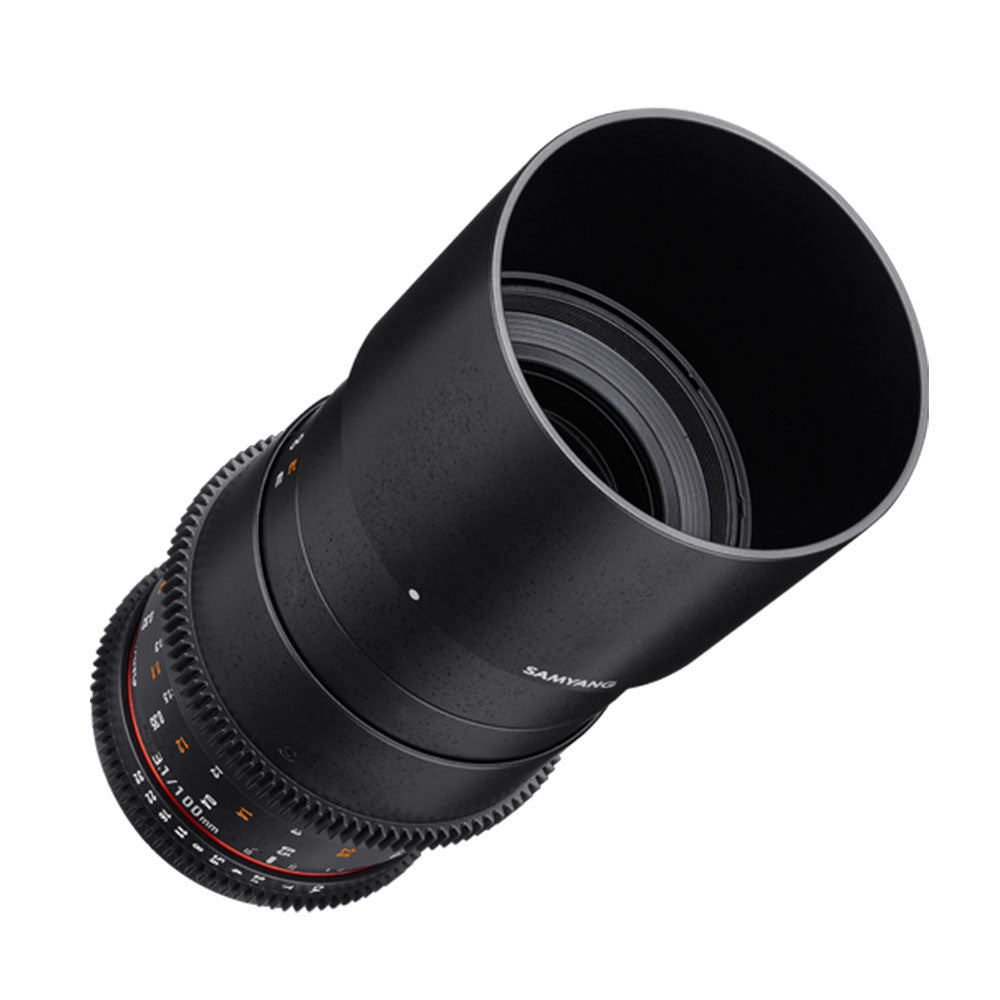

There are 9 aperture blades designed to be almost as a full circle when aperture is closed which expresses starlike ray clearly and beautifully. The frame of the lens is compact and solid since it is made of high-strength aluminum alloy so you can create trustworthy images. Also, detachable petal-shaped lens hood minimizes flare and ghost by sheltering lens from unnecessary lights.

Samyang Optics VDSLR II Cine Lens Line Up

Samyang 100mm T3.1 VDSLR ED UMC MACRO is one of Samyang Optics VDSLR II Cine Lens Line Up for full frame image sensor sizes. The lenses produce the same image color and have a united location of aperture and focus gear ring to maximize the convenience when filming.


Aperture Range T3.1 ~ T32
Optical Construction 15 Elements In 12 Groups
Minimum Focusing Distance 0.307m (1.0ft)
Filter Size 67.0mm
Maximum Diameter 81.6mm
Mount Nikon F Canon EF
Pentax K
Sony A
Canon M
Fuji X
Samsung NX
Sony E
Angle Of View 35mm 24.8˚ 24.8˚ 24.8˚ 24.8˚ - - - 24.8˚ -
APS-C 16.4˚ 15.4˚ 16.4˚ 16.4˚ 15.4˚ 16.4˚ 16.4˚ 16.4˚ -
- - - - - - - - 12.6˚
Length(mm)Lens Mount to Front 120.6mm 123.1mm 121.6mm 122.6mm 149.0mm 149.4mm 141.6mm 149.1mm 147.9mm
710g 725g 715g 720g 735g 775g 725g 735g 730g
Gear Module 0.8mm
A 7mm
B 4mm
C 43.8mm
D 8mm 10.5mm 9mm 10mm 36.4mm 36.8mm 29mm 36.5mm 35.3mm
Focus Ring Diameter 81.6mm
Aperture Ring Diameter 70.4mm 73.6mm
